USB hybrid module with 8 opto inputs and 8 relay outputs for loads up to 0.5A

Item no.: 2004412

306,03 € Prices plus statutory VAT | plus shipping and handling
Availability: In stock!
Delivery in 2-3 working days

Product description

General technical description

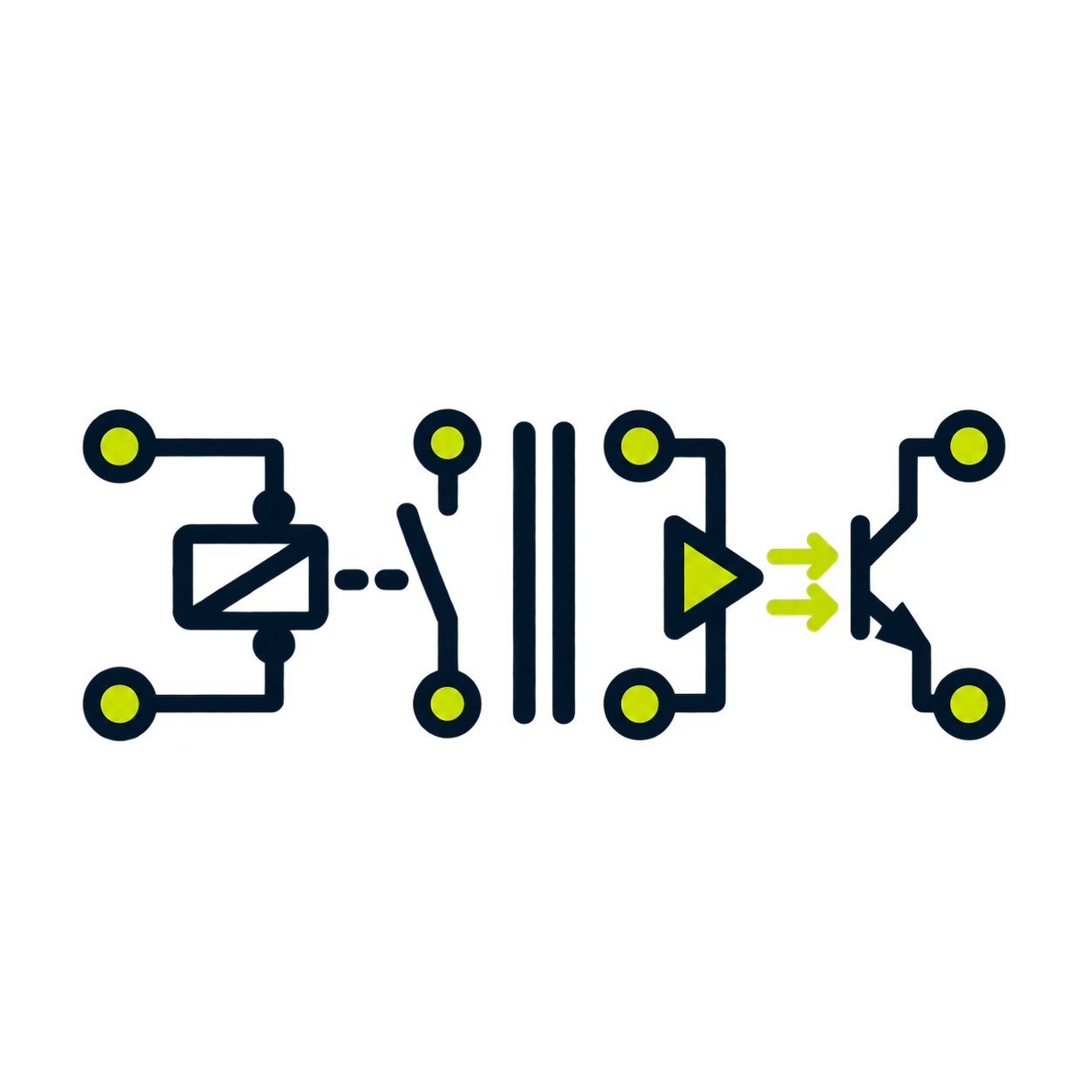

Our yamutec® USB HYBRID 8 module consists of 8 optocoupler inputs and 8 relay outputs. This allows you to safely capture and convert signals into control commands for the load circuit. This makes the yamutec® USB HYBRID 8 modules ideal for automation, measurement and process technology.

The yamutec® USB hybrid module has 8 reed relays of the SIP series for the outputs that can switch loads of 0.5A or 10W. This ensures 100 percent protection against incorrect plugging integrated MULTI CONNECTION SYSTEM with ejectors. It can also be used to code the relays by cutting off the coding lugs.

At the 8 entrances of the Optocouplers were installed in the hybrid module. The semiconductors create galvanic isolation when capturing signals, which additionally protects your IT system. The optocoupler inputs work in a voltage range of 3V to 30V. Our hybrid modules are designed for industrial use for control and regulation and therefore take the EMC and RoHS been developed.

Your advantages with the yamutec® USB optocoupler module
The 8 optocoupler inputs of our USB module have important properties for signal acquisition. This is how it is possible high switching performance and to reliably record fast input pulses. Since there is no mechanical wear, opto inputs have a long service life. In addition, due to their insensitivity to shock and vibration, they ensure fewer failures in the control and regulation circuit.

Our 8 relay outputs impress with their low switching losses and reliable separation of the control and load circuits. In addition, the relays are insensitive to electromagnetic interference fields and can withstand short-term overloads very well.

Further functions and properties of the hybrid module
To use several identical yamutec® USB HYBRID8 modules, an identification number can be configured for each module using the on-board coding switches. This means clear communication is also possible with several or up to 8 hybrid modules.

You can mount the module on the wall or on a top-hat rail using its devices. Built-in control LEDs allow activities and statuses to be read at any time.

A timeout protection function for the reed relays can be activated using a software command. If a communication problem occurs with the control PC, the timeout automatically opens the outputs. The time period can be set when activating.

Thanks to the Human Interface Device (HID) process, our yamutec® USB HYBRID8 modules no driver installation for commissioning. In addition, communication is more reliable and faster compared to standard modules. With the help of Plug and play technology save Time, since the time-consuming driver installation is no longer necessary.

Software implementation
The USB-HYBRID8 modules from Yamutec® enable seamless integration into various widely used programming languages using the included YMLib.dll file. This DLL file opens up a variety of possibilities and makes programming much easier.

Technical data

Supply voltage External 7V to 24V DC via pluggable screw terminal or via USB. Setting via jumper.
interface USB 2.0
control LEDs 5V supply voltage
interface activity
I/O activity
Timout shutdown (only for outputs)
Error message
Exits 8 relay outputs,
Galvanically isolated via relays
Max. switching voltage: 30V AC / 30V DC
Max. switching current: 0.5A AC / 0.5A DC
Max. transport current: 1.25A AC / 1.25A DC
Max. switching power: 10W
Switching time: < 1 ms
Entrances 8 optocoupler inputs
3V – 30V AC/DC signal voltage
Isolation voltage: 2.5KV AC for 1 minute
Maximum input current: 10mA
Universal connection for all types of conductors
Locking the plug connection
Codeable and 100 % protected against mismating by cutting off the coding lugs
Connection data Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-wire conductor 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-wire conductor; with wire end sleeve with plastic collar 0.25 ... 1 mm²
Fine-wire conductor; with wire end sleeve without plastic collar 0.25 ... 1 mm²
Stripping length 6 … 7 mm / 0.24 … 0.28 inch
dimension 105mm x 105mm x 74.5mm (L x W x H)
Weight 320g


Manual Product description
Source code examples VB6, VB.NET, C#, .NET6, LabVIEW and Python
Source code manual .NET6, python
for Linux & Windows
API developer tool YMLib.dll (64-bit | 32-bit | x86) library file for Windows
API reference guide YMLIB API References USB
Supported operating system Linux

scope of delivery

module USB HYBRID8 module
Accesories Coding lugs
Tool Operating tool
Disk CD with product description, manuals, data sheet & source code examples
Connection cable USB 2.0
