USB modules with 4 to 64 inputs and outputs
Plug & Play technology, without software installation
High-performance USB I/O modules
now also with Yamutec Logic
The printed circuit board relays in our modules can switch loads up to 3 A or 90 W. We offer switching modules with 4 to 64 inputs and outputs, operating with a maximum switching voltage of 36 V AC or 30 V DC. Thanks to the Multi Connection System, our relays are 100% protected against incorrect insertion. Coding is achieved by cutting off the coding tabs. Integrated indicator LEDs allow for quick monitoring of the relay's activity.
Many of our USB I/O modules are also optionally available with integrated Yamutec logic.. This allows switching, logic and sequence controls to be executed directly in the module.
Our Yamutec® USB modules are designed for control tasks and signal acquisition. Therefore, they are frequently used in production processes, test benches, and laboratory applications. Our YMLib API is available for software development. This allows you to integrate the USB modules via VB6, VB.NET, C#, .NET 6, Python or LabVIEW Integrate them individually into your application.
Yamutec Logic takes it a step further: The control logic is created graphically in Yamutec Studio 2027, transferred directly into the module, and can then be executed autonomously without a permanent connection to a control PC.
Product overview
USB relay modules
About the product details:
4 relay modules
 |
|
| USB REL4_8A | Look at the details |

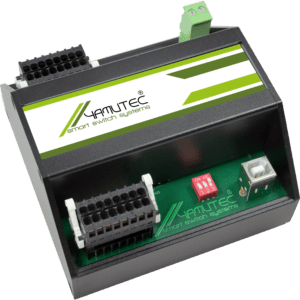

16 relay modules · also with logic
 |
|
| USB REL16 | Look at the details |
| USB REL16_3A | Look at the details |

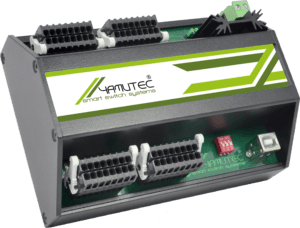

32 relay modules · also with logic
 |
|
| USB REL32 | Look at the details |
| USB REL32_3A | Look at the details |

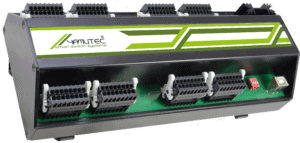

64 relay modules · also with logic
 |
|
| USB REL64 | Look at the details |
| USB REL64_3A | Look at the details |
USB optocoupler modules
About the product details:
16 Opto Modules · also with Logic
|
|
| USB OPT16 | Look at the details |
32 Opto Modules · also with Logic
|
|
| USB OPT32 | Look at the details |
64 Opto Modules · also with Logic
|
|
| USB OPT64 | Look at the details |
USB hybrid modules
About the product details:
8 Hybrid Modules · also with Logic
|
|
| USB HYBRID 8 | Look at the details |
| USB HYBRID 8_3A | Look at the details |
16 Hybrid Modules · also with Logic
|
|
| USB HYBRID 16 | Look at the details |
| USB HYBRID 16_3A | Look at the details |
32 Hybrid Modules · also with Logic
|
|
| USB HYBRID 32 | Look at the details |
| USB HYBRID 32_3A | Look at the details |
Product feature
-
On-board coding switch for internal identification when using up to 7 modules at the same time
-
Plug and play technology
-
Timeout function can be individually configured
-
without driver installation
-
Robust aluminum housing – suitable for DIN rail and wall mounting
-
Galvanic isolation of inputs and outputs
-
The modules meet the EMC and RoHS standards
-
Control LEDs
Highlights
USB relay and input cards with Plug and Play technology
Thanks to the Human Interface Device (HID) process, our USB modules do not require any driver installation. Simply plug it in and you're ready to go. In addition, communication is more reliable and faster compared to standard modules. The plug and play technology of our Yamutec® cards saves you time as there is no need for time-consuming driver installation.
Timeout function – Protects your load system in the event of a control PC failure
We have in ours USB output modules and in the USB input modules a timeout function integrated. This is an input/output protection that automatically opens the relays of the Yamutec® module if communication with the control PC is lost. This can happen, for example, in the event of a software error or a system crash. For more flexibility, you can specify the period after which the timeout function should take effect. Set your desired timeout period in second increments.
Easily combine several USB modules
Would you like to combine several USB relay cards or USB optomodules in your application? Our Yamutec® modules make your work easier. You can assign an internal identification number to each USB card using the on-board coding switch.
Additional protection via optocoupler
The built-in optocoupler ensures galvanic isolation of the inputs. This means your control PC will not be damaged in the event of overvoltage or incorrect polarity.
