USB-REL4-8A module

USB relay module with 4 outputs for loads up to 8A

Item no.: 5218729

69,95 € Prices plus statutory VAT | plus shipping and handling
Availability: In stock!
Delivery in 2-3 working days

Product description

General description of the USB-REL4-8A module
The Yamutec® USB-REL4-8A modules offer a powerful solution for industrial applications with precise and reliable load switching up to 8A. Thanks to the proven USB interface, they enable flexible control and can be individually adapted and expanded, supported by the source code examples provided.

USB relay card with Plug and Play technology
The Yamutec® USB-REL4-8A modules rely on the Human Interface Device (HID) process, which ensures smooth integration into industrial environments. A key advantage is that no complex driver installation is necessary. The plug-and-play principle enables time-saving commissioning

The integration of multiple USB modules in a common system
The integrated on-board coding switch allows individual identification numbers to be assigned to our Yamutec® USB modules. This allows up to 7 modules to be used simultaneously and facilitates the handling of large load systems in industrial applications, enabling efficient use and optimized control.

Software implementation
The Yamutec® USB-REL4-8A modules offer effortless integration into various common programming languages with the included YMLib.dll file. The YMLib.dll file opens up a variety of possibilities and simplifies programming considerably.

Technical data

Supply voltage External 5V DC
USB power supply
Internal 5V supply voltage
Max. current consumption 200mA at 5V/DC (4 relays switched on)
interface USB 2.0
control LEDs interface activity
Output level
Exits 4 relay outputs, galvanically isolated via relays.
Max. switching voltage: 36V AC / 24V DC
Max. switching current: 8A AC / 8A DCSwitching time: < 1 ms
connector Screw terminal standard
Connection cross section: 0.32 … 3.3 mm² (22 … 12 AWG)
Screw: M2.5 steel, nickel-plated
Torque: 0.4Nm
Dimensions 72mm x 76mm x 16mm (L x W x H)
Weight 71g

Downloads

Manual Product description
Source code examples VB6, VB.NET, C#, .NET6, LabVIEW and Python
Source code manual .NET6, python
for Linux & Windows
API developer tool YMLib.dll (64-bit | 32-bit | x86) library file for Windows
API reference guide YMLIB API References USB
Supported operating system Linux
Windows
data sheet Power Relay 1 POLE-8A Medium Load Control

scope of delivery

module USB REL4_8A module
Disk CD with product description, manuals, data sheet & source code examples

Weitere Informationen

USB_REL4_003
USB_REL4_002
USB_REL4_001
USB_REL4_004

Recommended accessories

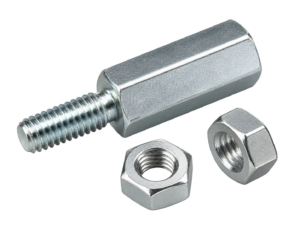

Abstandsbolzen

M4, 15 mm
Hexagon nut, M4
Item no.: 1806780

1,90 €
Prices plus statutory. VAT
plus shipping and handling
Availability: In stock!
Delivery in 2-3 working days

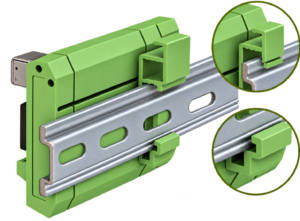

Aufbaugehäuse

hutschienenmontage

Phoenix Contact surface-mounted housing
for DIN rail mounting
Item no.: 1877802

13,76 € Prices plus statutory. VAT
plus shipping and handling
Availability: In stock!
Delivery in 2-3 working days

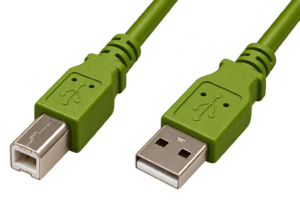

USB cable USB 2.0
