RS232 OPTOCOUPLER MODULE
64-channel optocoupler module
SER-OPT64
64 optocouplers
Entrances
RS232
up to 115200 baud
digital inputs
galvanically isolated
industry
I/O module
✓Out of stock Delivery in approximately 1–2 weeks
PRODUCT DETAILS
productdescription
64 galvanically isolated inputs
The Yamutec® SER-OPT64 It captures digital states via 64 optocoupler inputs. The signal and control circuits remain galvanically isolated. This allows numerous signals to be acquired via a single module for testing, monitoring, and automation tasks.
For comprehensive signal acquisition
The optocoupler inputs operate without mechanical contacts and are suitable for continuous monitoring of digital states. Information on signal voltage, input current, and isolation can be found in the technical data.
Communication via RS232
The SER-OPT64 communicates via RS232 / V.24 / COM with up to 115200 bits/s. The serial interface allows integration into existing control and acquisition systems.
For industrial applications
This module consolidates signal acquisition for applications in building automation, process engineering, and environmental technology. Control LEDs indicate power supply, interface activity, I/O activity, and error states. Codable connectors ensure secure connection.
TECHNICAL INFORMATION
Data & Downloads
Technical data
| RS232 INTERFACE | |
|---|---|
| Supply voltage | External 7V to 24V DC (via two-pole pluggable screw terminal) |
| interface | RS232 / V.24 / COM |
| control LEDs | Internal 5V supply voltage interface activity I/O activity Error message |
| ENTRANCES | |
| optocoupler | 64 optocoupler inputs 3V – 30V AC/DC signal voltage Isolation voltage: 2.5KV AC for 1 minute Maximum input current: 10mA |
| connector | 2 ROW MULTI CONNECTION SYSTEM 100% protection against mismating Can be coded by cutting off the coding lugs |
| DIMENSION | |
| DIN rail mounting | TS 35 |
| Dimensions Weight |
165mm x 105mm x 74.5mm (L x W x H) 620g |
Downloads
| MANUAL | |
|---|---|
| Instructions | German English |
| SOFTWARE | |
| sample software | VB.net, C# without installation |
Supported operating systems
| Microsoft | Compatible with Windows XP and later |
| Linux | |
| NI Linux Real-Time | RTOS |
scope of delivery
| module | SER-OPT64 Module |
| Accesories | Coding lugs |
| Tool | Actuating tool |
| Disk | CD with product description, manuals, datasheet & source code examples |
ACCESORIES
Recommended Accesories
ACCESORIES
MW HDR-60-15
Power supply
DIN rail mounting, 60 W, 15 V, 4 A – can be mounted directly onto the DIN rail.
Item No.: 1510541
27,00 €
In stock Delivery in 2–3 working days
ACCESORIES
Strain relief plate
for 16-pin WAGO connectors
It facilitates plugging and unplugging; the operating openings remain easily accessible.
Item No.: 2703800
0,50 €
In stock Delivery in 2–3 working days
ACCESORIES

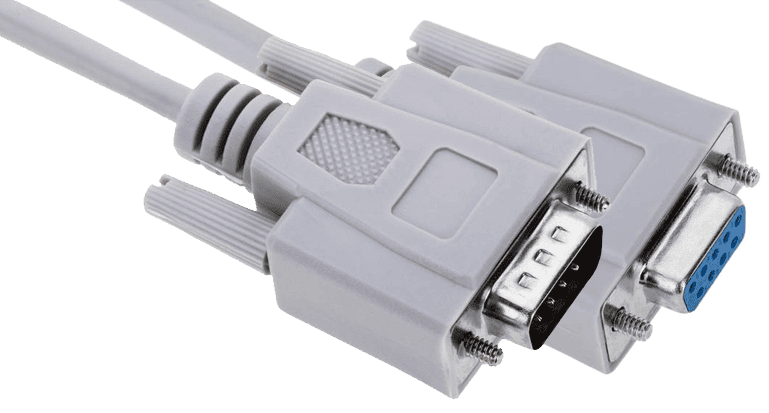

Serial DB9 cable
Plug to socket
DB9 communication cable with plug to socket and 1:1 pin assignment for direct RS232 connection.
Item No.: 1409780
9,95 €
In stock Delivery in 2–3 working days
ACCESORIES

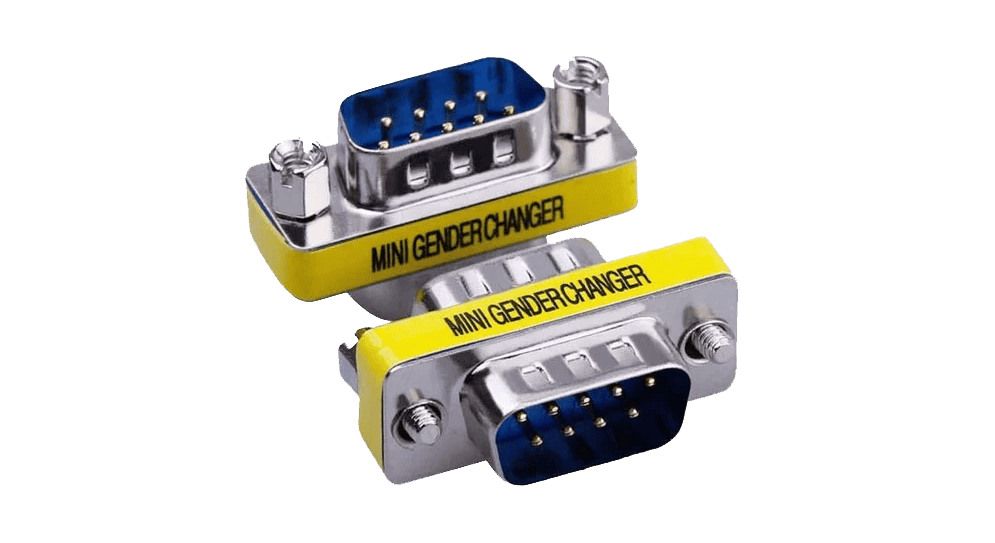

Gender Changer
D-Sub 9-pin connector
Adapts serial connections and converts one 9-pin connector into another 9-pin connector.
Item No.: 1409781
3,95 €
In stock Delivery in 2–3 working days
ACCESORIES

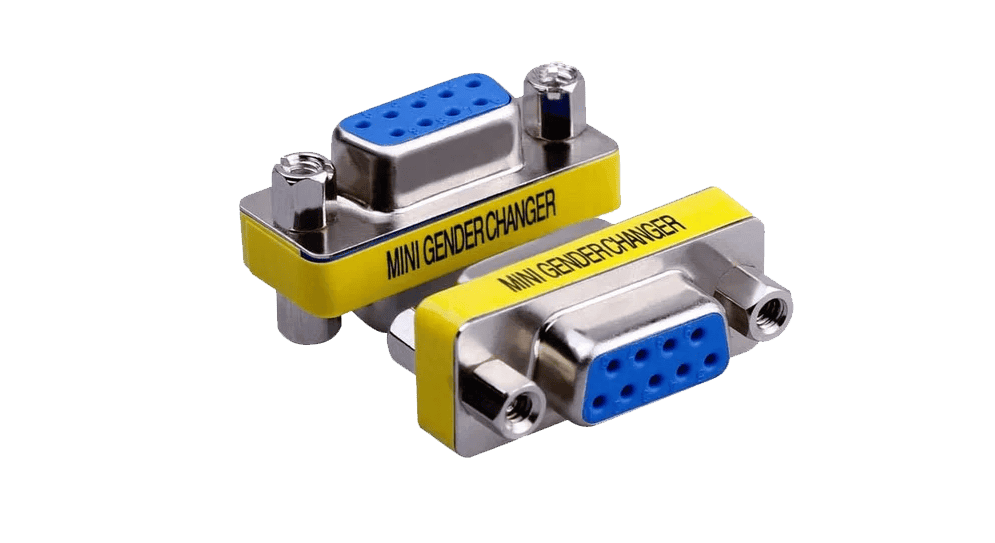

Gender Changer
D-Sub 9-pin socket
Adapts serial connections and converts one 9-pin socket into another 9-pin socket.
Item No.: 1409782
3,95 €
In stock Delivery in 2–3 working days
ACCESORIES

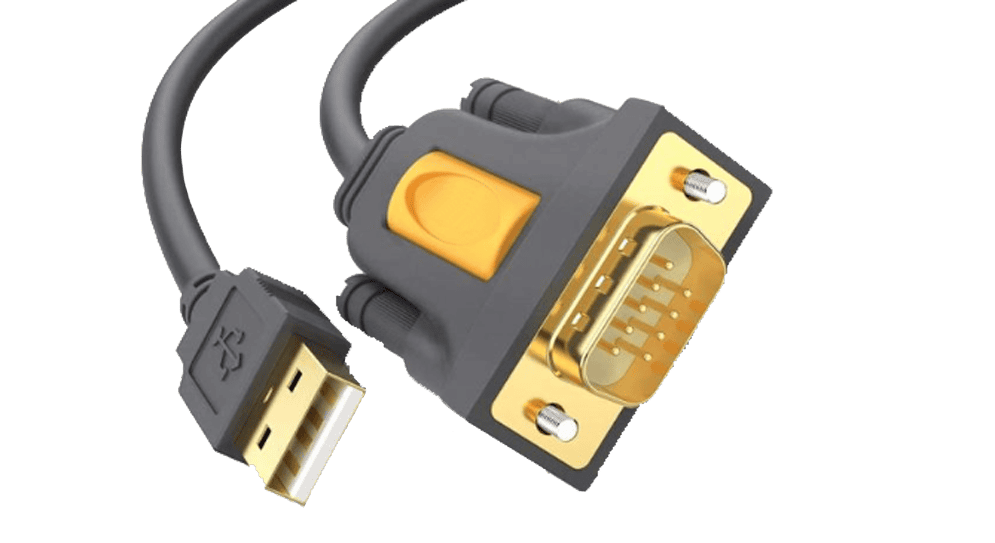

USB to RS232
